Automatic In Line Spindle Capper

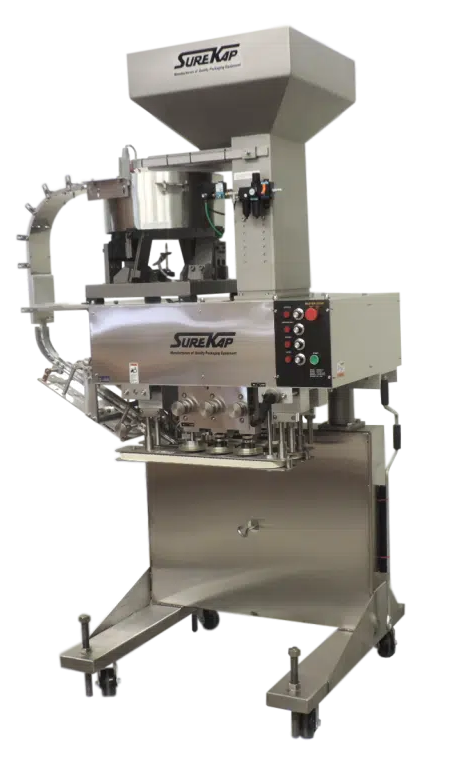

SureKap SK6000-BF6 Fully Automatic Capper. Based on a heavy duty stainless steel frame, our newest fully automatic capper utilizes the latest technology to automatically place and precisely torque a wide spectrum of cap types onto virtually any bottle style. The straight line, six spindle capper features a new non-vibratory, high speed belt feeder with floor level loading and is designed for maximum efficiency and versatility.
Features
- Six spindles
- Two sets of mechanical clutches
- Front knob adjustments
- Non Vibratory Feeder
- Handles 400, 410 and CRC caps from 8 mm to 70 mm
- Floor Level Loading
- Fast Changeover
- Small Footprint
- 4 cubic foot Stainless Steel Hopper
- Dust Covers Maintain Clean Cap Supply
- Heavy duty stainless steel frame
Options
- PLC controlled non-contact torque monitoring
- Stainless steel gripper belts assembly pulleys and bearings
- Stainless steel clutches
- Pneumatic clutches
- Quick changeover package including counters and scales
- Power height adjustment
- Capper guarding package with safety interlocks
- Cap hopper mounted to side
- NEMA 4 controls and switches
- Enhanced corrosion resistance coatings
- Hazardous location construction
Specs
Electrics and Air:
- 115V / 60Hz / 1 Ph
- 15 running Amps
- 1 - 2 cfm @ 60 - 80 psi
Shipping Info:
- Crate dimensions: 72" (L) x 84" (W) x 101" (H)
- Crate weight: 2000 lbs
Automatic In Line Spindle Capper with Floor Level Hopper and Belt Cap Feed System in Replace of Vibratory Bowl

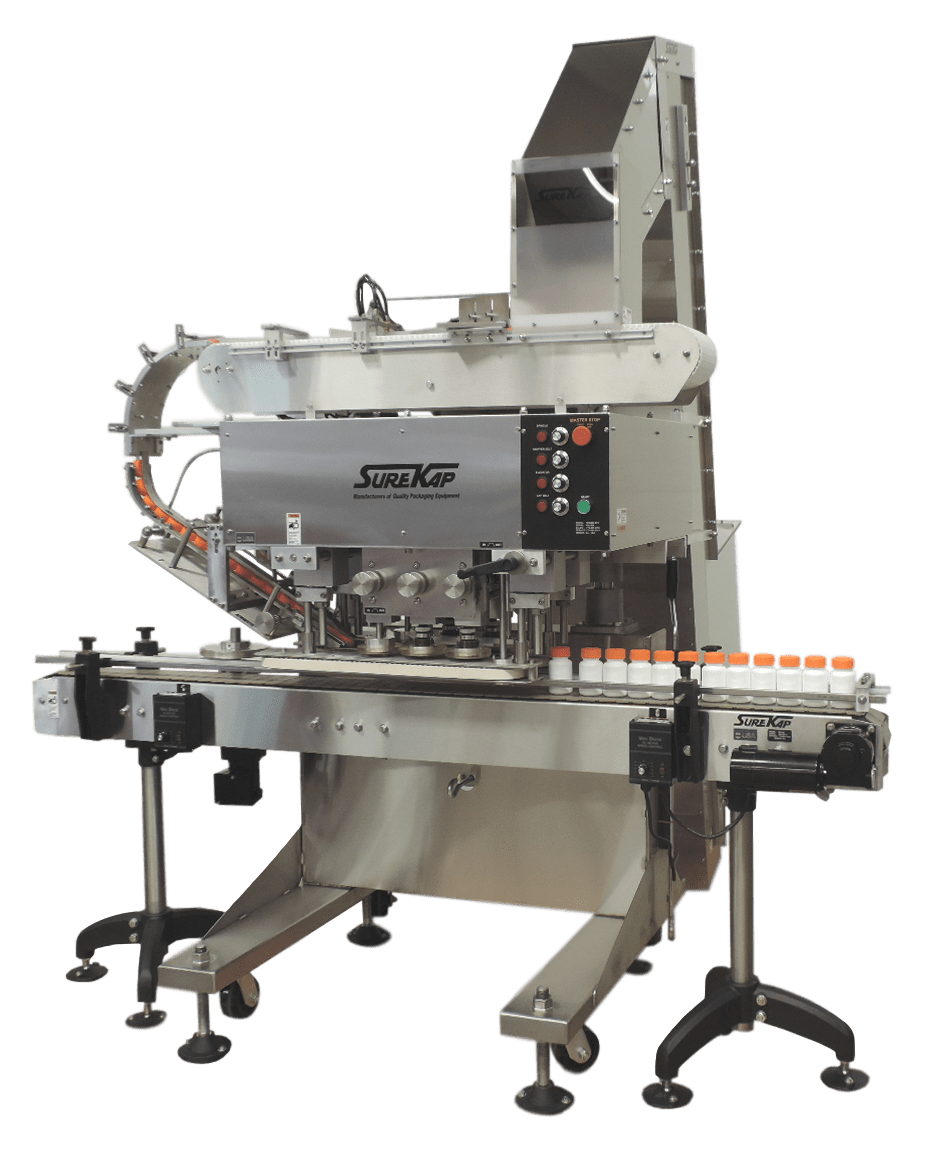

Sure Kap SK6000-18 C-Chute Capping Machine. The fully automatic, straight line, six spindle SK6000-18 capper features a head mounted heavy duty C-chute. This model's heavy duty design is durable and drastically reduces the need for maintenance while increasing the productivity and flexibility.
M-Series Servo-Driven Cap Retorquing System
The M-Series Servo-Driven Cap Retorqing System is a premium industrial automation platform engineered for precision torque control, high throughput, and operational flexibility. Built on advanced servo motion architecture and Allen-Bradley control infrastructure, the system delivers consistent, repeatable cap application across diverse container formats while minimizing downtime through mechanical quick-change tooling and recipe-based configuration.
- Throughput: Up to 24 containers per minute (application dependent)
- Motion Platform: Dual-axis LinMot linear servo system
- Changeover: Quick-change cap chucks with recipe-driven configuration
- Safety Architecture: Fully enclosed Lexan guarding with interlocked access doors
- Integration: Available with or without conveyor systems
Technical Specification Summary
- System Performance
- Parameter Specification
- Throughput Up to 24 CPM
- Power Supply 220 or 440 VAC input
- Air Supply 2–3 CFM @ 80–90 PSI
- Motion Platform Linmot dual-axis linear servo
Controls & Automation
- Allen-Bradley CompactLogix PLC
- Allen-Bradley color touchscreen HMI
- Allen-Bradley proximity sensors with quick-disconnect connectors
Motion & Mechanics
- Servo-driven capping heads with precision positioning
- Modular cap chuck tooling system
- Recipe-based motion and torque profiles
Pneumatics
Festo pneumatic components
Construction & Safety
- Stainless steel structural frame and components
- Fully enclosed Lexan guarding
- Interlocked swing-out doors (front and rear)
